Tsev > Cov khoom > ISUZU TRUCK > SEWAGE TRUCK > 6WG1 420/460HP 20 cubic QINGLING ISUZU GIGA siab siab jetting tanker tsheb

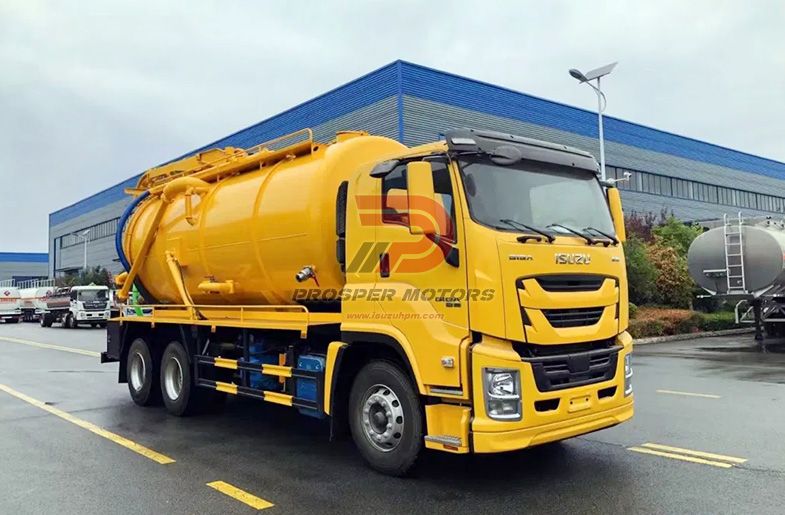

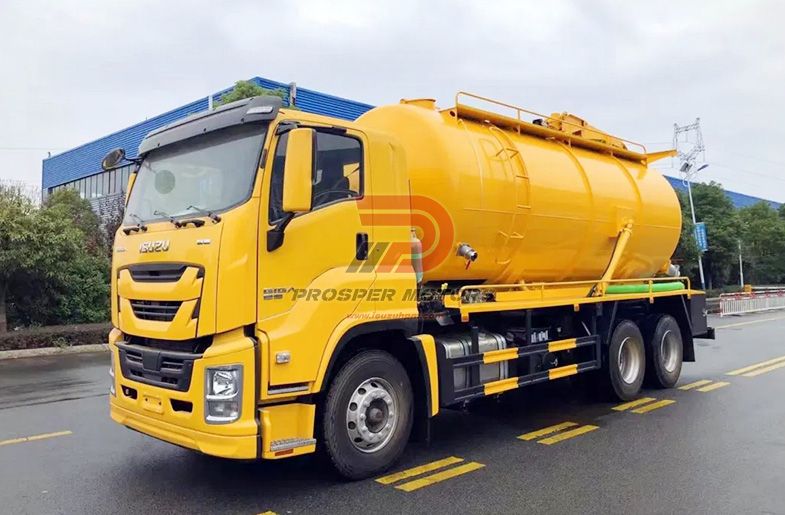

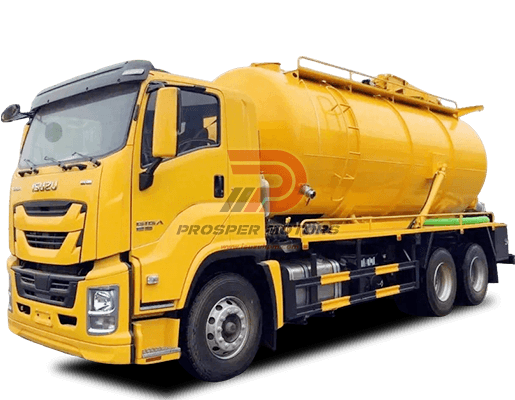

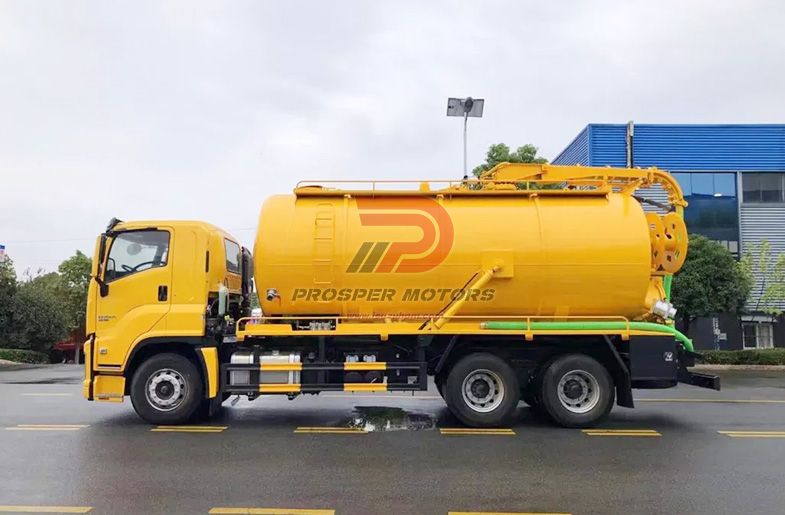

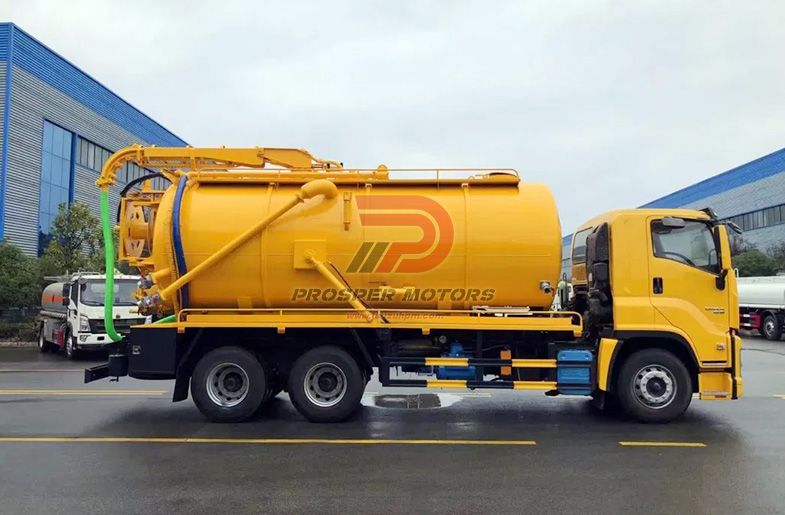

6WG1 420/460HP 20 cubic QINGLING ISUZU GIGA siab siab jetting tanker tsheb
Lub tshuab nqus tsev twj tso kua mis kuj hu ua lub tshuab nqus tsev twj tso kua mis, lub tshuab nqus tsev twj tso kua mis, lub tshuab nqus tsev nqus tsev vacuum, lub tshuab nqus tsev nqus tsev vacuum, lub tshuab nqus tsev nqus tsev nqus tsev vacuum, lub tshuab nqus tsev nqus tsev vacuum, lub tshuab nqus tsev nqus tsev vacuum lossis lub tshuab nqus tsev vacuum sludge thiab lwm yam. sludge, thiab khib nyiab los ntawm cov septic tanks, cov kav dej phwj tuaj, cua daj cua dub, thiab cov dej khib nyiab hauv kev lag luam.
GVP (Kg)
33000
Lub zog (PS / Rpm)
420/460 @ 1500
Tank Volume (L)
20000
Kev sib kis
FAST 12F&2R los yog ZF 8F&1R
Wheelbase-WB(Mm)
4600 + 1370 ib
Dej Tank Volume (L)
5000
SHARE :
ISUZU GIGA dej phwj tuaj muag online
QINGLING ISUZU GIGA siab siab dav hlau tanker tsheb siv cov cuab yeej tsis zoo los tshem tawm cov kua, sludge, thiab cov khib nyiab ib nrab. Nws suav nrog cov twj tso kua mis dej thiab cov twj tso kua mis uas tuaj yeem ntxuav txoj kev lossis cov kav dej. Lub tsheb ciav hlau no tau siv dav hauv kev tu dej hauv nroog, kev tswj xyuas kev lag luam pov tseg, kev siv ua liaj ua teb (kho cov quav khib nyiab), roj teb thiab lwm yam.
-

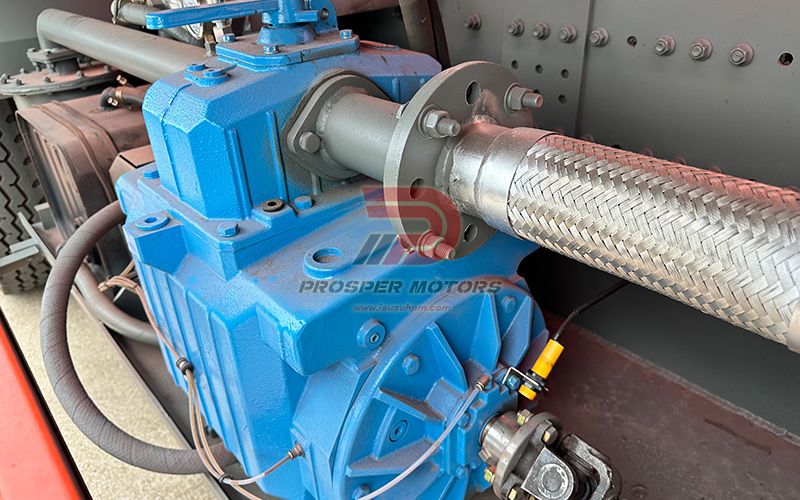

QINGLING ISUZU lub tshuab nqus tsev twj tso kua mis
Isuzu Tuam Tshoj cov dej phwj tuaj lub tshuab nqus tsev nruab nrog cov khoom lag luam ltalis Moro PM110W lub tshuab nqus tsev vacuum uas yog qhov ua tau zoo, lub tshuab nqus tsev hnyav tshwj xeeb tsim los rau kev xav tau cov kav dej phwj thiab kev siv tshuaj ntxuav. Nws lub hwj chim nyoos thiab siab txaus tus nqi, unparalleled durability, kev ntseeg siab ntawm nws cov roj-da dej lubrication system ua rau lub tsheb no zoo heev.Lub twj tso kua mis yog tsav los ntawm kev sib kis-mounted PTO (Power Take-Off) nrog kev kho dual ob-theem gearing uas tuaj yeem tiv thaiv lub twj tso kua mis zoo thiab yooj yim rau kev tu lub twj tso kua mis. -

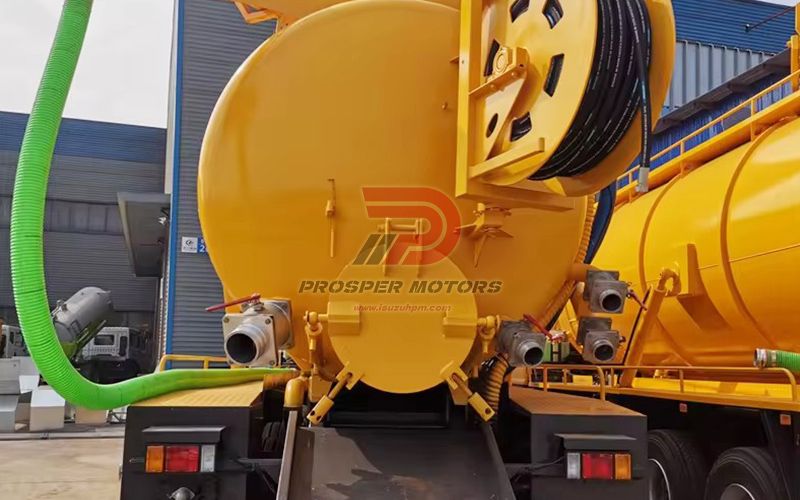

Isuzu 20 cubic septic twj tso kua mis tsheb tseem ceeb

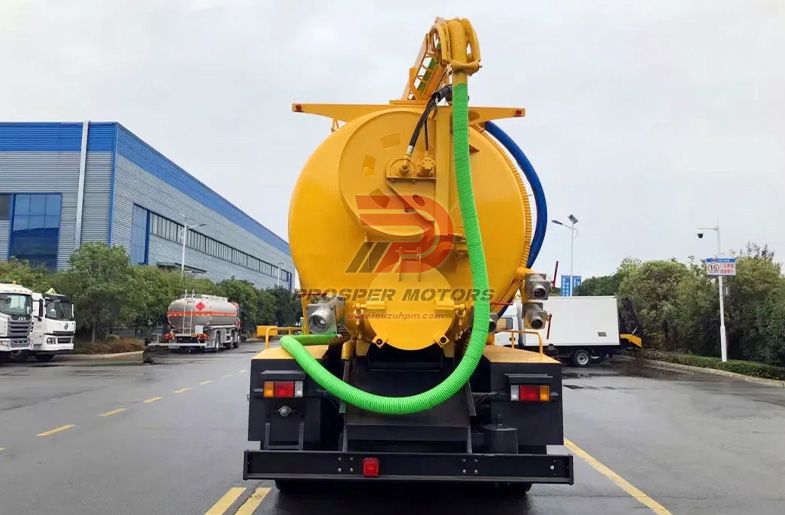

Nruab nrog 360 degree rotation viav caj npab kuj hu ua jib caj npab ntawm QINGLING ISUZU GIGA siab siab jetting tanker tsheb. Lub viav caj npab system muab kev sib xyaw ua ke zoo tshaj plaws, kev nyab xeeb, ergonomics, thiab kev ua haujlwm zoo.Lub tshuab nqus dej twj tso kua mis nruab nrog 60m siab siab hose uas yog ib qho tshwj xeeb, muaj zog hose tsim los xa cov dej los ntawm lub twj tso kua mis mus rau lub tshuab ntxuav. Nws lub luag haujlwm yog qhov tseem ceeb rau lub tsheb thauj khoom tseem ceeb ntawm kev ua haujlwm.
ISUZU GIGA Dej phwj Truck Specifications
Cab rooj
3, nrog ib tug pw tsaug zog
Tsav hom
6x4 ua
Cav Ua
QINGLING ISUZU
Wheelbase
4600 + 1370 hli
Cav Qauv
6 wg1
Pem hauv ntej qag
7,000 kg
Egnine HP
420/460 TSI
rear qag
13000kg, tag nrho 26000kg
Kev khiav tawm
1 5681ml
Kev sib kis
Phau ntawv FAST 12F&2R los yog ZF 8F&1R
Emission Txuj
Euro 3 - Euro 6
Number of Tyre
10+1
Tyre Loj
315/80R22.5
Zuag qhia tag nrho
10500x25500x3800mm
Qhov ntim ntawm cov dej phwj tuaj
15000 litres
Max lub tshuab nqus tsev vacuum
95%
Lub tshuab nqus tsev twj
Ltalis MORO PM110W
Pump flux
12000 lt / min
ISUZU Tuam Tshoj dej phwj tsheb Parameter
Qhov no 6WG1 420/460HP 20 cubic QINGLING ISUZU GIGA siab siab jetting tanker tsheb yog tsim los ntawm lub haib ISUZU GIGA 6x4 chassis, engineered rau qhov xav tau tshaj plaws kev lag luam thiab hauv nroog tu dej. Nws nta cov kev lag luam-ua hauv Ltalis MORO PM110W lub tshuab nqus tsev twj, ua rau nws tsis muaj kev sib piv rau kev ua haujlwm loj.
Lub tsheb no yog dav siv nyob rau hauv qab aera.
Kev tu dej hauv nroog (septic tanks, cua daj cua dub ntws);
Cov khoom siv khib nyiab pov tseg (cov kua dej tsis muaj teeb meem / sludge);
Kev khiav dej num thaum muaj xwm ceev dewatering;
Peb cov neeg siv khoom nthuav qhia
Related Products
LHD los yog RHD 4x2 JAPAN ISUZU NPR 6m³ 6000 litres Sewage Suction Truck
Qauv
NPR
Tsav hom
4x2 (6 log)
Cav
132/150/160 TSI
Tank Volume
6,000 L
QINGLING ISUZU FSR 4HK1 205hp 8cbm 8000 litres Sewer Jet Nqus Truck
Qauv
FSR
Tsav hom
4x4 (6 log)
Cav
190/205 hp cas
Tank Volume
8,000 L
10 cubic meters 4x2 ISUZU FTR 10m3 dej phwj lub tshuab nqus tsev tank tsheb
Qauv
FTR
Tsav hom
4x2 (6 log)
Cav
205/225 Hp
Tank Volume
10,000L
5m³ 190HP QINGLING ISUZU FRR sab tes tsav lub tshuab nqus tsev lim tsheb
Qauv
FRR
Tsav hom
4x2 (6 log)
Cav
190/205 hp cas
Tank Volume
5,000L
ISUZU CYH GIGA 380HP 18 cubic 18TON Combination Jetting & Nqus Truck
Qauv
CYH
Tsav hom
6 X 4 (10 Log)
Cav
3 80hp
Tank Volume
Lub tshuab nqus tsev tank 13000L; dej tank 5000L
ISUZU NKR 115HP-130HP 3000L 3TON lub tshuab nqus tsev twj tso kua mis
Qauv
NKR
Tsav hom
4x2 (6 log)
Cav
115-130 Hp
Tank Volume
3000 LITER
Peb cov lus nug nrov tshaj plaws
-
Dab tsi yog qhov siab tshaj plaws suction nrug lub tshuab nqus tsev tuaj yeem ua tiav?
Lub tshuab nqus tsev niaj hnub no feem ntau ua tiav 5-7 meters ntsug suction (16-23 ft). Cov qauv ua haujlwm siab nrog MORO PM80 twj tuaj yeem ncav cuag li 8m (26ft) nrog rau kev teeb tsa zoo hose. -
Yuav ua li cas tswj kev nqus dej?
Xyuas lub tshuab nqus tsev twj tso kua mis tsis tu ncua thiab tiv thaiv hose kinking / clogging. -
Yuav ua li cas txheeb xyuas thaum lub tshuab nqus tsev vacuum yuav tsum tau saib xyuas?
Siab txawv txav: Ntau tshaj 15% txo qis hauv lub tshuab nqus tsev siab (qhov tseem ceeb: < -0.6 bar poob los ntawm qhov pib) Suab ceeb toom: Hlau sib tsoo/knocking suab los ntawm lub twj tso kua mis sib dhos Ntshai los yog xuav lub suab nrov qhia cov pa tawm hauv cov hoses Qhov taw qhia ua haujlwm: Txuas lub sij hawm nqus lub voj voog rau cov qauv ntim Pom cov kua dej ntws tawm ntawm cov ntsiab lus txuas -
Ntev npaum li cas kuv yuav tsum ua haujlwm rau lub tshuab nqus tsev twj tso kua mis?
Kev pabcuam sijhawm sib txawv ntawm tus qauv: Kev saib xyuas yooj yim: Txhua 250 teev ua haujlwm lossis 3 lub hlis Kev tshuaj xyuas tag nrho: Txhua 1,000 teev Cov khoom tseem ceeb (cov ntsaws ruaj ruaj / cov kabmob): Hloov txhua 2,000 teev Ib txwm ua raws li OEM phau ntawv qhia (piv txwv li, ISUZU 4HK1 xyaw yuav tsum tau hloov roj txhua 500h). -
Dab tsi ntawm cov khib nyiab tuaj yeem nqus cov tsheb thauj khoom?
Tso cai: dej phwj tuaj, sludge, roj-dej sib tov Txwv: Corrosive chemicals / combustibles
