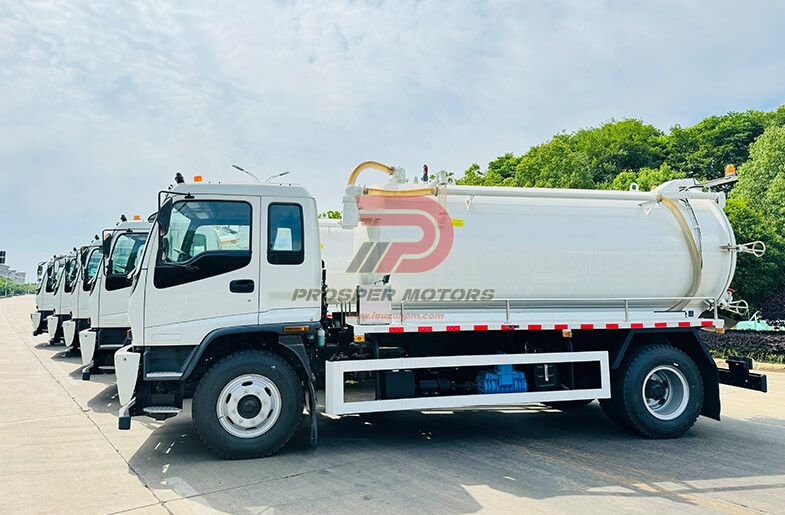

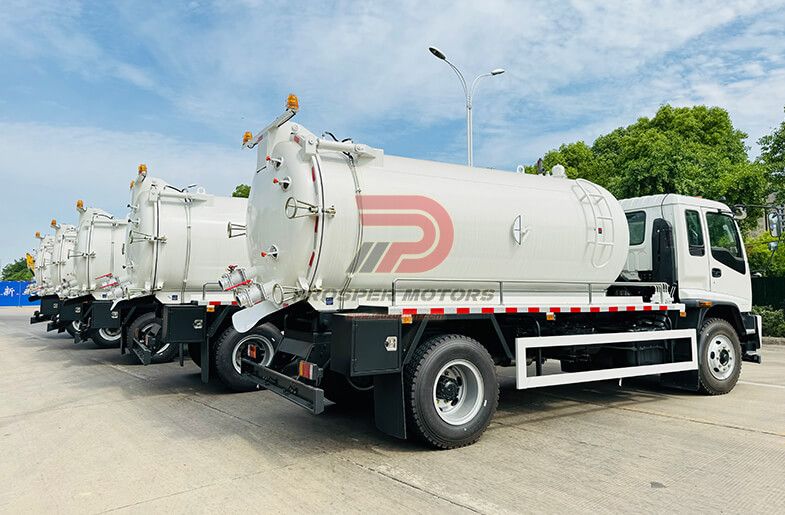

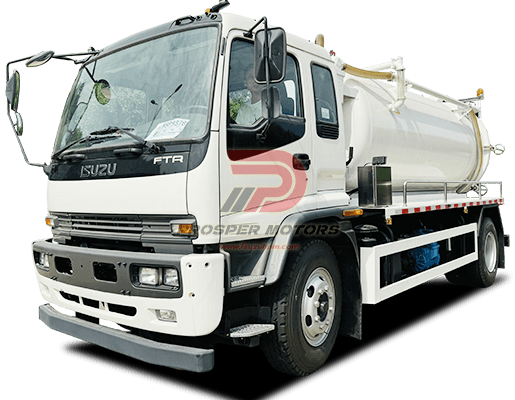

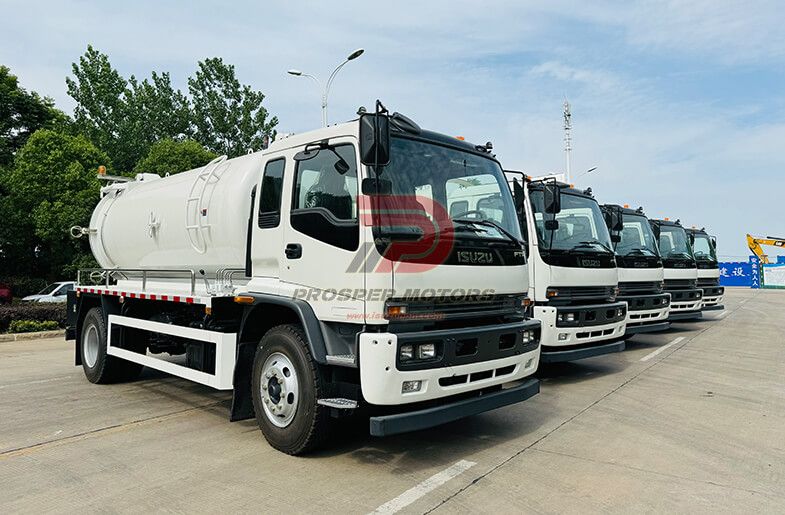

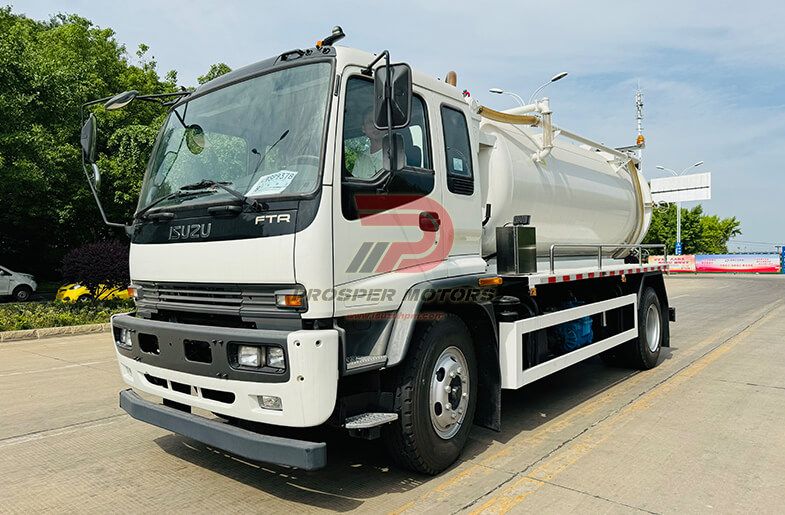

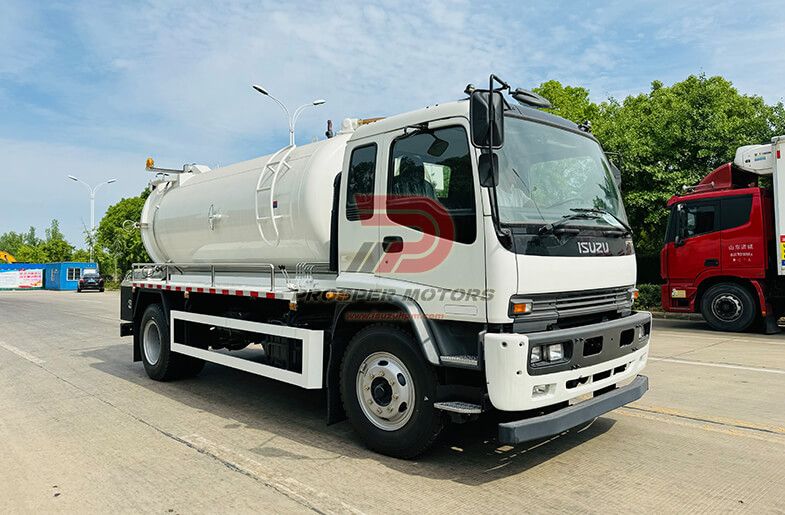

10 cubic meters 4x2 ISUZU FTR 10m3 dej phwj lub tshuab nqus tsev tank tsheb
ISUZU Tuam Tshoj FTR dej phwj lub tshuab nqus tsev tank tsheb, tseem hu ua lub tshuab nqus tsev nqus tsev vacuum, lub tshuab nqus tsev vacuum tsheb, lub tshuab nqus tsev nqus tsev vacuum, los yog lub tshuab nqus tsev vacuum, yog lub tsheb tshwj xeeb rau kev tuav pov tseg. Lub 4x2 qingling dej tankers rau kev muag khoom yog nruab nrog lub tshuab nqus tsev twj tso kua mis thiab lub tank ruaj ruaj, tsim los tshem tawm thiab thauj cov kua khib nyiab, sludge, thiab cov khib nyiab los ntawm cov kav dej phwj tuaj, cov kav dej phwj tuaj, cov cua daj cua dub, thiab cov dej khib nyiab.
GVP (Kg)
16000
Lub zog (PS / Rpm)
205/225 @ 2600
Tank Volume (L)
10000
Kev sib kis
6 Rau pem hauv ntej, 1 thim rov qab
Wheelbase-WB(Mm)
4500
SHARE :
ISUZU Sewage Truck Technology Ntug
ISUZU FTR 10m³ dej phwj lub tshuab nqus tsev tsheb thauj khoom siv cov cuab yeej siv tsis zoo kom tshem tawm cov kua, sludge, thiab cov khib nyiab ib nrab. Qee cov qauv ntawm cov kav dej phwj tuaj no tau nruab nrog cov twj tso kua mis thiab cov nozzles los ntxuav txoj kev lossis cov kav dej phwj tuaj. Lub 10 cubic meters 4x2 lim dej tankers tau siv dav hauv kev tu dej hauv nroog, kev tswj cov khib nyiab, kev ua liaj ua teb (xws li cov av khib nyiab), roj av, thiab lwm yam kev lag luam.
-

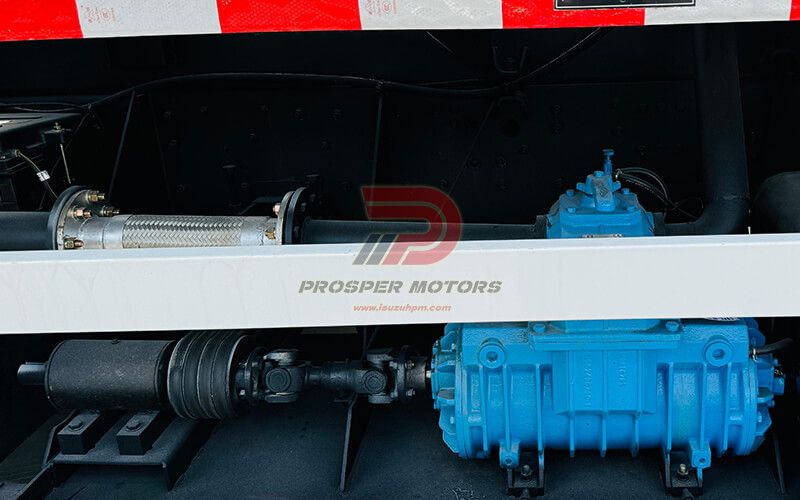

Hwm ISUZU Nqus Tank Truck
FTR 10m³ cov kav dej phwj tuaj tau nruab nrog lub tshuab nqus tsev ltalis Moro PM80A, paub txog nws lub zog thiab kev ua haujlwm zoo dua.ISUZU lub twj tso kua mis yog siv los ntawm kev sib kis-mounted PTO (Power Take-Off) featuring adjustable dual ob-theem gearing system, uas zoo tiv thaiv lub twj tso kua mis thiab yooj yim txij nkawm.Siv aluminium alloy bumper uas tiv thaiv 4x2 dej phwj lorry thaum ua tau zoo nkauj heev. -

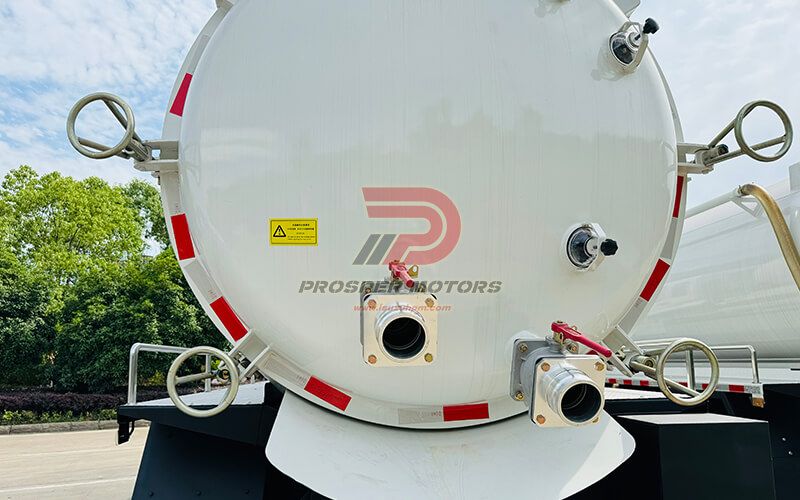

ISUZU FTR dej phwj tsheb nta

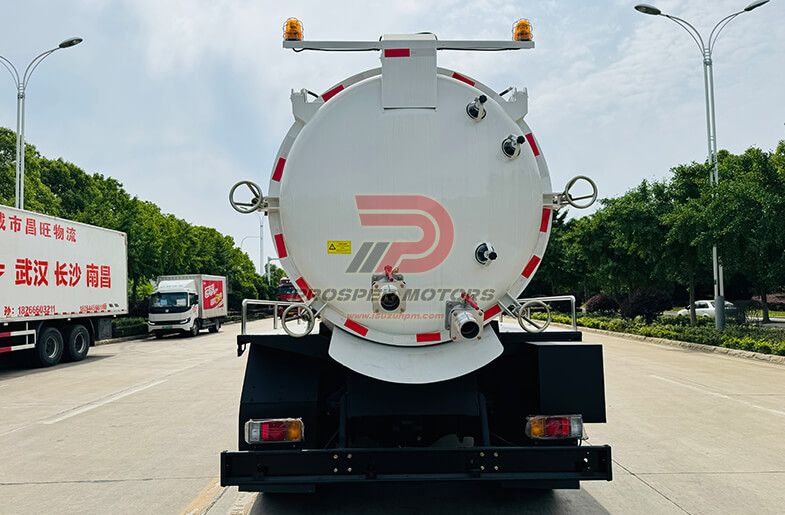

Sib txawv nrog sab dej phwj hauv cov yeeb nkab, peb siv lub rear-head feed inlet thiab tawm qhov hluav taws xob ntawm ISUZU FTR 10m³ dej phwj lub tshuab nqus tsev tank tsheb. Cov txheej txheem tshiab no zoo dua rau kev ua lag luam txawv teb chaws.10 cubic meters 4x2 dej tanker nta plaub hydraulic locking pab kiag li lawm uas tau nruab los xyuas kom meej sealing kev ua tau zoo.
ISUZU FTR Dej Num Truck Specifications
Cab rooj
2
Tsav hom
4x2 ib
Cav Ua
ISUZU
Wheelbase
4,500 hli
Cav Qauv
4 HK1
Pem hauv ntej qag
6,300 Kg
Egnine HP
205/225 Hp
rear qag
13,000 Kg
Kev khiav tawm
5, 193ml
Kev sib kis
Phau ntawv, ISUZU MLD 6 Forward & 1 thim rov qab
Emission Txuj
Euro 3 - Euro 6
Number of Tyre
6+1
Tyre Loj
295/80R22.5
Zuag qhia tag nrho
8500x2500x3500mm
Qhov ntim ntawm cov dej phwj tuaj
10,000 litres
Max lub tshuab nqus tsev vacuum
95%
Lub tshuab nqus tsev twj
Ltalis MORO PM80
Pump flux
12000 lt / min
ISUZU 10m³ Dej Dej Tanker Parameter
ISUZU 10m³ dej phwj lub tshuab nqus tsev tank tsheb yog tsim nrog ISUZU FTR tsheb chassis nrog 4HK1, 205/225hp cav. Cov kav dej phwj tuaj muaj qhov tseem ceeb ntawm ITALY MORO PM80 twj tso kua mis nrog 95% lub tshuab nqus tsev kom ua tau zoo 10,000 litres dej khib nyiab. 4x2 dej phwj tankers tau dav siv hauv cheeb tsam hauv qab no.
Kev tu dej hauv nroog (septic tanks, cua daj cua dub ntws);
Cov khoom siv khib nyiab pov tseg (cov kua dej tsis muaj teeb meem / sludge);
Kev khiav dej num thaum muaj xwm ceev dewatering;
Peb cov neeg siv khoom nthuav qhia
Related Products
LHD los yog RHD 4x2 JAPAN ISUZU NPR 6m³ 6000 litres Sewage Suction Truck
Qauv
NPR
Tsav hom
4x2 (6 log)
Cav
132/150/160 TSI
Tank Volume
6,000 L
QINGLING ISUZU FSR 4HK1 205hp 8cbm 8000 litres Sewer Jet Nqus Truck
Qauv
FSR
Tsav hom
4x4 (6 log)
Cav
190/205 hp cas
Tank Volume
8,000 L
5m³ 190HP QINGLING ISUZU FRR sab tes tsav lub tshuab nqus tsev lim tsheb
Qauv
FRR
Tsav hom
4x2 (6 log)
Cav
190/205 hp cas
Tank Volume
5,000L
6WG1 420/460HP 20 cubic QINGLING ISUZU GIGA siab siab jetting tanker tsheb
Qauv
CYZ
Tsav hom
6 X 4 (10 Log)
Cav
420/460 TSI
Tank Volume
Nqus tank 15000 litres dej tank 5000 litres
ISUZU CYH GIGA 380HP 18 cubic 18TON Combination Jetting & Nqus Truck
Qauv
CYH
Tsav hom
6 X 4 (10 Log)
Cav
3 80hp
Tank Volume
Lub tshuab nqus tsev tank 13000L; dej tank 5000L
ISUZU NKR 115HP-130HP 3000L 3TON lub tshuab nqus tsev twj tso kua mis
Qauv
NKR
Tsav hom
4x2 (6 log)
Cav
115-130 Hp
Tank Volume
3000 LITER
Peb cov lus nug nrov tshaj plaws
-
Dab tsi yog qhov siab tshaj plaws suction nrug lub tshuab nqus tsev tuaj yeem ua tiav?
Lub tshuab nqus tsev niaj hnub no feem ntau ua tiav 5-7 meters ntsug suction (16-23 ft). Cov qauv ua haujlwm siab nrog MORO PM80 twj tuaj yeem ncav cuag li 8m (26ft) nrog rau kev teeb tsa zoo hose. -
Yuav ua li cas tswj kev nqus dej?
Xyuas lub tshuab nqus tsev twj tso kua mis tsis tu ncua thiab tiv thaiv hose kinking / clogging. -
Yuav ua li cas txheeb xyuas thaum lub tshuab nqus tsev vacuum yuav tsum tau saib xyuas?
Siab txawv txav: Ntau tshaj 15% txo qis hauv lub tshuab nqus tsev siab (qhov tseem ceeb: < -0.6 bar poob los ntawm qhov pib) Suab ceeb toom: Hlau sib tsoo/knocking suab los ntawm lub twj tso kua mis sib dhos Ntshai los yog xuav lub suab nrov qhia cov pa tawm hauv cov hoses Qhov taw qhia ua haujlwm: Txuas lub sijhawm nqus lub voj voog rau cov qauv ntim Pom cov kua dej ntws tawm ntawm cov ntsiab lus txuas -
Ntev npaum li cas kuv yuav tsum ua haujlwm rau lub tshuab nqus tsev twj tso kua mis?
Kev pabcuam sijhawm sib txawv ntawm tus qauv: Kev saib xyuas yooj yim: Txhua 250 teev ua haujlwm lossis 3 lub hlis Kev tshuaj xyuas tag nrho: Txhua 1,000 teev Cov khoom tseem ceeb (cov ntsaws ruaj ruaj / cov kabmob): Hloov txhua 2,000 teev Ib txwm ua raws li OEM phau ntawv qhia (piv txwv li, ISUZU 4HK1 xyaw yuav tsum tau hloov roj txhua 500h). -
Dab tsi ntawm cov khib nyiab tuaj yeem nqus cov tsheb thauj khoom?
Tso cai: dej phwj tuaj, sludge, roj-dej sib tov Txwv: Corrosive chemicals / combustibles
