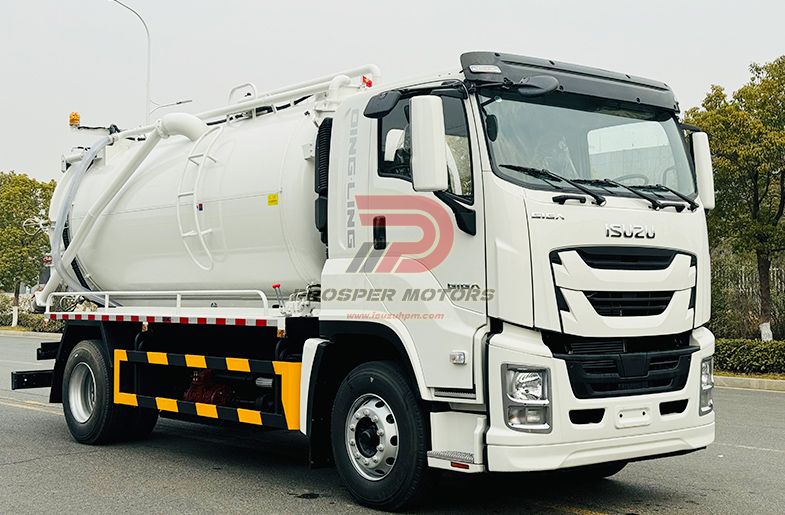

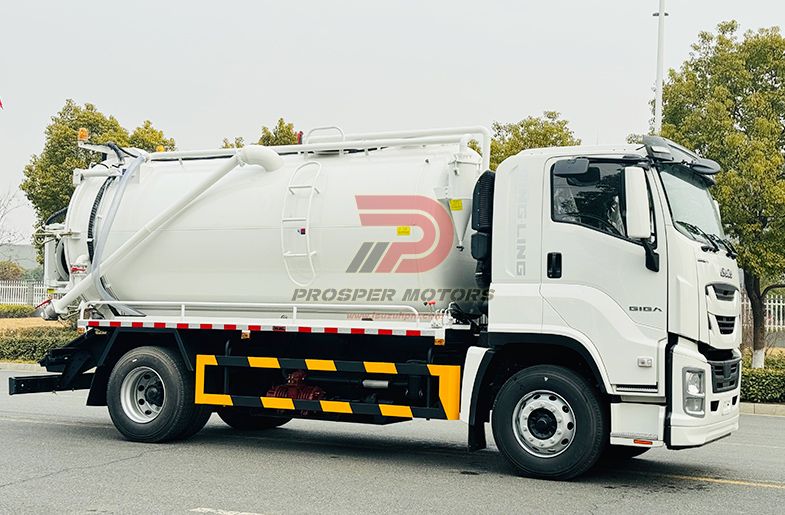

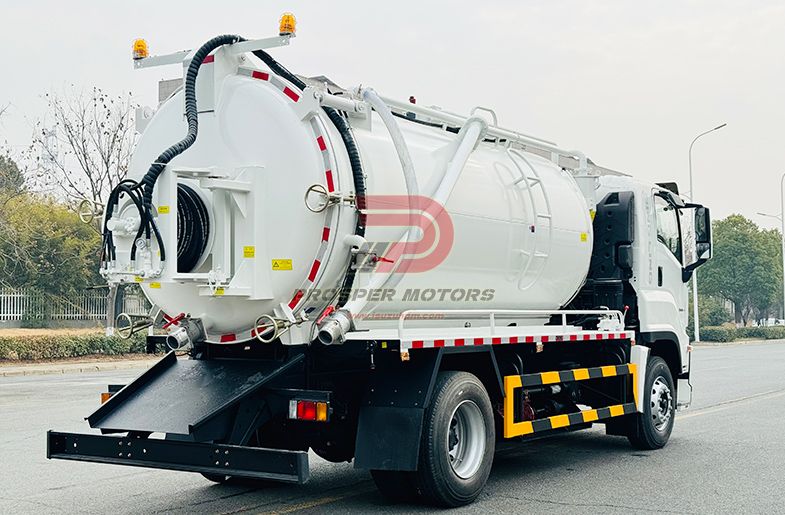

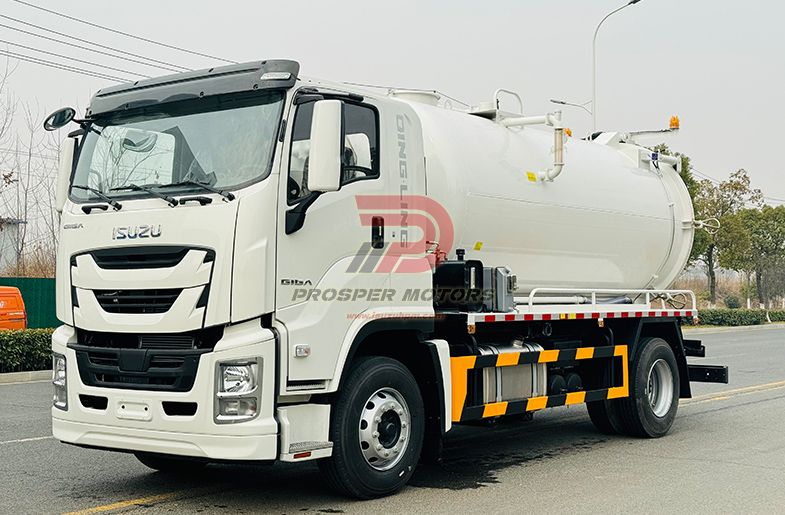

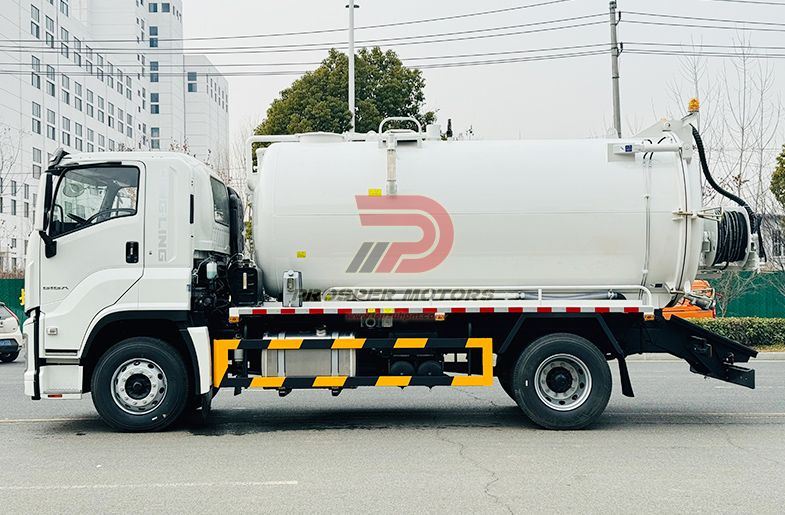

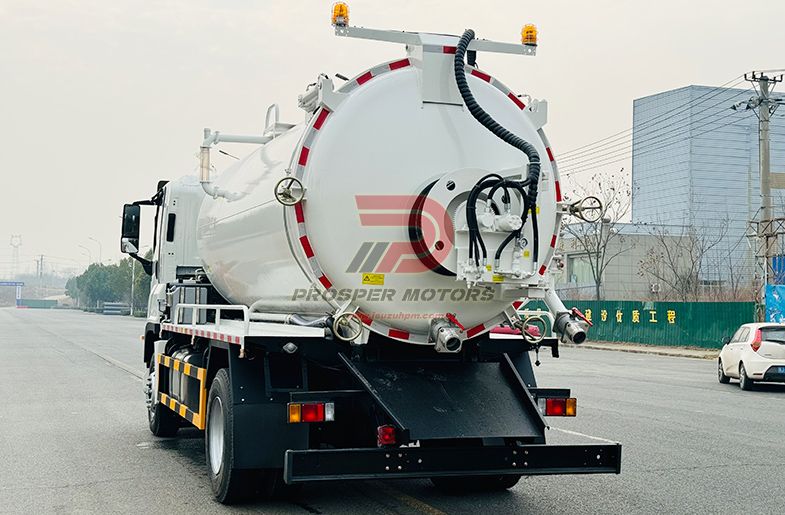

Combination dav hlau nqus tsev tanker ISUZU FVR 12 cubic 12m3 12000L
Isuzu Tuam Tshoj ua ke dav hlau nqus tsev tank kuj tseem hu ua kev sib xyaw dav hlau nqus tsheb thauj khoom, dav hlau nqus tsev vacuum nqus tsev vacuum nqus tsev vacuum nqus tsev vacuum, lub tshuab nqus tsev nqus tsev vacuum excavation tsheb, kev lag luam nqus tsev vacuum tsheb, cov kav dej ua ke tsheb, kev lag luam nqus tsheb thauj khoom rau roj thiab roj, dej dav hlau nqus tsev vacuum tsheb thiab lwm yam. thiab kev ua haujlwm rov qab los ntawm kev puas tsuaj.
GVP (Kg)
18000
Lub zog (HP)
240-325 : kuv
Nqus Tank Volume (L)
10000
Kev sib kis
8MT lub 9MT
Wheelbase-WB(Mm)
4500 lossis 5550
Dej Tank Volume (L)
2000
SHARE :
ISUZU FVR Sewage Truck Qhov Zoo
Qingling Isuzu FVR 12000 liters lub tshuab nqus tsev jetting tsheb sib xyaw ua ke lub zog siab dej siab tshaj plaws kom tshem tawm cov blockages thiab cov khib nyiab los ntawm cov kav dej thiab cov kav dej nrog lub tshuab nqus tsev uas muaj peev xwm ib txhij tshem tawm cov sludge, dej khib nyiab, thiab cov khoom ib nrab rau hauv nws lub tank kaw. Los ntawm kev sib txuas ob txoj haujlwm no rau hauv ib lub tsheb, muaj zog. Nws muaj cov kev daws teeb meem rau kev tu cov kav dej phwj tuaj, cov dej ntws tawm, tswj cov dej khib nyiab, roj thiab roj.
-

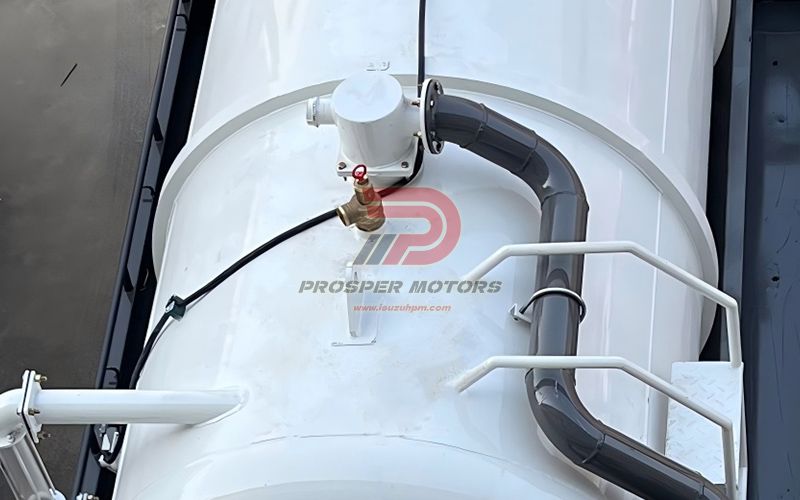

Isuzu Tuam Tshoj Nqus Tanker Dual-Pressure Valve
Lub tshuab nqus tsev vacuum, los yog lub tshuab nqus tsev twj tso kua mis, tso siab rau nws cov kev ruaj ntseg dual-siab valve rau kev ua haujlwm ncaj ncees.Tshwj xeeb, qhov tseeb JUROP valve ntawm no isuzu 12 cubic dej phwj ua ke lub tsheb ua raws li kev tiv thaiv tseem ceeb.Nws cia li tso tawm qhov zoo tshaj plaws thaum lub sij hawm tu siab los tiv thaiv lub tank overstress thiab sib npaug tsis zoo siab thaum lub tshuab nqus tsev ua haujlwm, tiv thaiv lub tank los ntawm implosion.Qhov no ua kom lub dav hlau nqus tsev twj tso kua mis sib xyaw ua haujlwm zoo nyob rau hauv cov voj voog nruj ntawm kev siv zog thiab nqus. -

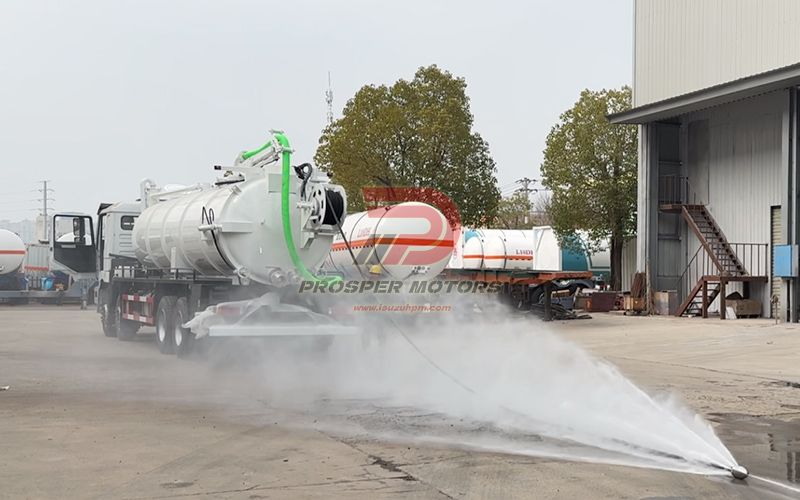

Cov yam ntxwv tseem ceeb ntawm 12m³ Dav Hlau Nqus Tanker
Qhov no 12m3 ua ke dav hlau nqus tsev tank yog nruab nrog 1no.60m siab siab hose thiab 10no. nozzles.Lub siab-siab hose thiab nozzle yog cov khoom tseem ceeb ntawm Kev Sib Txuas Dav Hlau Nqus Tsheb / Tanker.Lub hose hloov tau xa cov dej los ntawm lub twj tso kua mis, thaum lub tshuab tshwj xeeb nozzle tsom qhov no rau hauv cov dav hlau siab tshaj plaws.Cov kwj dej muaj zog no cuam tshuam los ntawm cov blockages, ntxuav cov yeeb nkab phab ntsa, thiab yaug cov khib nyiab rau lub tshuab nqus tsev sib xyaw kom tshem tawm, ua kom cov kav xa dej tau zoo.
Qingling 2000L Sewage Truck Specifications
Cab rooj
2
Tsav hom
4x2 ua
Cav Ua
ISUZU
Wheelbase
4500mm los yog 5550mm
Cav Qauv
6HK1-TC SERIES
Pem hauv ntej qag
6,300 Kg
Egnine HP
240HP-325HP TSI
rear qag
13,000 Kg
Kev khiav tawm
5, 193ml
Kev sib kis
Phau ntawv, 8MT lossis 9MT
Emission Txuj
UA 4/5/6
Number of Tyre
6+1
Tyre Loj
295/80R22.5
Zuag qhia tag nrho
8500x2500x3500mm
Qhov ntim ntawm cov dej phwj tuaj
10,000 litres
Lub tank ntim dej
2,000 litres
Lub tshuab nqus tsev twj
Ltalis JUROP
Lub twj tso kua mis siab
Suav PINFU hom
ISUZU Combination dav hlau nqus tanker Parameter
ISUZU FVR 12M3 Combination Jet Vacuum Tanker yog tsim los ntawm kev txhim khu kev qha ISUZU FVR chassis nrog 5X GIGA cabin tshiab thiab siv los ntawm 240hp 6KH1-TCG lub cav, lub tshuab nqus tsev Jetting Truck no muab kev ua haujlwm tshwj xeeb thiab kev nplij siab ntawm tus neeg teb xov tooj.
Nws qhov kev teeb tsa tseem ceeb suav nrog 12-cubic-meter (12,000L) sludge tank thiab 2-cubic-meter huv tank. Lub kaw lus tau tsav los ntawm cov khoom siv ua haujlwm siab: lub tshuab nqus tsev ITALY JUROP ua kom lub zog nqus kom zoo rau kev tshem tawm cov pov tseg, thaum lub twj tso kua mis PINFU muaj peev xwm tu zoo. Chav tsev yog nruab nrog 60-meter ntev, 19mm txoj kab uas hla high-pressure hose thiab 10 txawv nozzles los daws ntau yam xwm txheej thaiv.
Lub hydraulic hose reel thiab hydraulically ua haujlwm rear npog nrog 4 mechanical locks rau kev ruaj ntseg sealing. Txheem DN150 tso tawm thiab DN100 cov chaw nres nkoj ua kom muaj kev sib raug zoo nrog kev lag luam fittings. Qingling ua ke Jet Vacuum Tanker ua ke ua haujlwm ruaj khov, lub zog, thiab kev tsim qauv ntse rau kev ua haujlwm zoo dua.
Peb cov neeg siv khoom nthuav qhia
Related Products
LHD los yog RHD 4x2 JAPAN ISUZU NPR 6m³ 6000 litres Sewage Suction Truck
Qauv
NPR
Tsav hom
4x2 (6 log)
Cav
132/150/160 TSI
Tank Volume
6,000 L
QINGLING ISUZU FSR 4HK1 205hp 8cbm 8000 litres Sewer Jet Nqus Truck
Qauv
FSR
Tsav hom
4x4 (6 log)
Cav
190/205 hp cas
Tank Volume
8,000 L
10 cubic meters 4x2 ISUZU FTR 10m3 dej phwj lub tshuab nqus tsev tank tsheb
Qauv
FTR
Tsav hom
4x2 (6 log)
Cav
205/225 Hp
Tank Volume
10,000L
5m³ 190HP QINGLING ISUZU FRR sab tes tsav lub tshuab nqus tsev lim tsheb
Qauv
FRR
Tsav hom
4x2 (6 log)
Cav
190/205 hp cas
Tank Volume
5,000L
6WG1 420/460HP 20 cubic QINGLING ISUZU GIGA siab siab jetting tanker tsheb
Qauv
CYZ
Tsav hom
6 X 4 (10 Log)
Cav
420/460 TSI
Tank Volume
Nqus tank 15000 litres dej tank 5000 litres
ISUZU CYH GIGA 380HP 18 cubic 18TON Combination Jetting & Nqus Truck
Qauv
CYH
Tsav hom
6 X 4 (10 Log)
Cav
3 80hp
Tank Volume
Lub tshuab nqus tsev tank 13000L; dej tank 5000L
Peb cov lus nug nrov tshaj plaws
-
Dab tsi yog qhov siab tshaj plaws suction nrug lub tshuab nqus tsev tuaj yeem ua tiav?
Lub tshuab nqus tsev niaj hnub no feem ntau ua tiav 5-7 meters ntsug suction (16-23 ft). Cov qauv ua haujlwm siab nrog MORO PM80 twj tuaj yeem ncav cuag li 8m (26ft) nrog rau kev teeb tsa zoo hose. -
Yuav ua li cas tswj kev nqus dej?
Xyuas lub tshuab nqus tsev twj tso kua mis tsis tu ncua thiab tiv thaiv hose kinking / clogging. -
Yuav ua li cas txheeb xyuas thaum lub tshuab nqus tsev vacuum yuav tsum tau saib xyuas?
Siab txawv txav: Ntau tshaj 15% txo qis hauv lub tshuab nqus tsev siab (qhov tseem ceeb: < -0.6 bar poob los ntawm qhov pib) Suab ceeb toom: Hlau sib tsoo/knocking suab los ntawm lub twj tso kua mis sib dhos Ntshai los yog xuav lub suab nrov qhia cov pa tawm hauv cov hoses Qhov taw qhia ua haujlwm: Txuas lub sij hawm nqus lub voj voog rau cov qauv ntim Pom cov kua dej ntws tawm ntawm cov ntsiab lus txuas -
Ntev npaum li cas kuv yuav tsum ua haujlwm rau lub tshuab nqus tsev twj tso kua mis?
Kev pabcuam sijhawm sib txawv ntawm tus qauv: Kev saib xyuas yooj yim: Txhua 250 teev ua haujlwm lossis 3 lub hlis Kev tshuaj xyuas tag nrho: Txhua 1,000 teev Cov khoom tseem ceeb (cov ntsaws ruaj ruaj / cov kabmob): Hloov txhua 2,000 teev Ib txwm ua raws li OEM phau ntawv qhia (piv txwv li, ISUZU 4HK1 xyaw yuav tsum tau hloov roj txhua 500h). -
Dab tsi ntawm cov khib nyiab tuaj yeem nqus cov tsheb thauj khoom?
Tso cai: dej phwj tuaj, sludge, roj-dej sib tov Txwv: Corrosive chemicals / combustibles
